Android开发：帧动画,补间动画和属性动画的使用

发表于2020-04-10更新于2020-04-10字数统计1.5k阅读时长17分

本文参考：二哥cjpnice原博客

帧动画

  • 效果图
    帧动画

在drawable中新建资源文件frame_anim.xml，使用animation-list定义动画，animation-list定义的动画将顺次从上往下显示item内的图片，设置oneshot=false则反复循环执行，true则执行一次

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
<?xml version="1.0" encoding="utf-8"?>
<animation-list android:oneshot="false" xmlns:android="http://schemas.android.com/apk/res/android">
    <item
            android:drawable="@drawable/anim_1"
            android:duration="100"/>
    <item
            android:drawable="@drawable/anim_2"
            android:duration="100"/>
    <item
            android:drawable="@drawable/anim_3"
            android:duration="100"/>
    <item
            android:drawable="@drawable/anim_4"
            android:duration="100"/>

</animation-list>

在layout布局文件activity_frame_anim中使用ImageView，将上一步写好的动画通过src或background引用

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
        xmlns:app="http://schemas.android.com/apk/res-auto"
        xmlns:tools="http://schemas.android.com/tools"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        tools:context=".FrameAnimActivity">

    <ImageView
        android:id="@+id/frame_image"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:background="@drawable/frame_anim"/>

</LinearLayout>

在FrameAnimActivity中启动动画

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
package com.huatec.edu.demoactivity;

import androidx.appcompat.app.AppCompatActivity;

import android.graphics.drawable.AnimationDrawable;
import android.os.Bundle;
import android.widget.ImageView;

public class FrameAnimActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_frame_anim);
        ImageView imageView = findViewById(R.id.frame_image);
        imageView.setImageResource(R.drawable.frame_anim);
        AnimationDrawable animationDrawable = (AnimationDrawable)imageView.getDrawable();
        animationDrawable.start();
    }
}

补间动画(视图动画)

淡入淡出动画（Alpha）,缩放动画(Scale),位移动画(Translate),旋转动画(Roate)

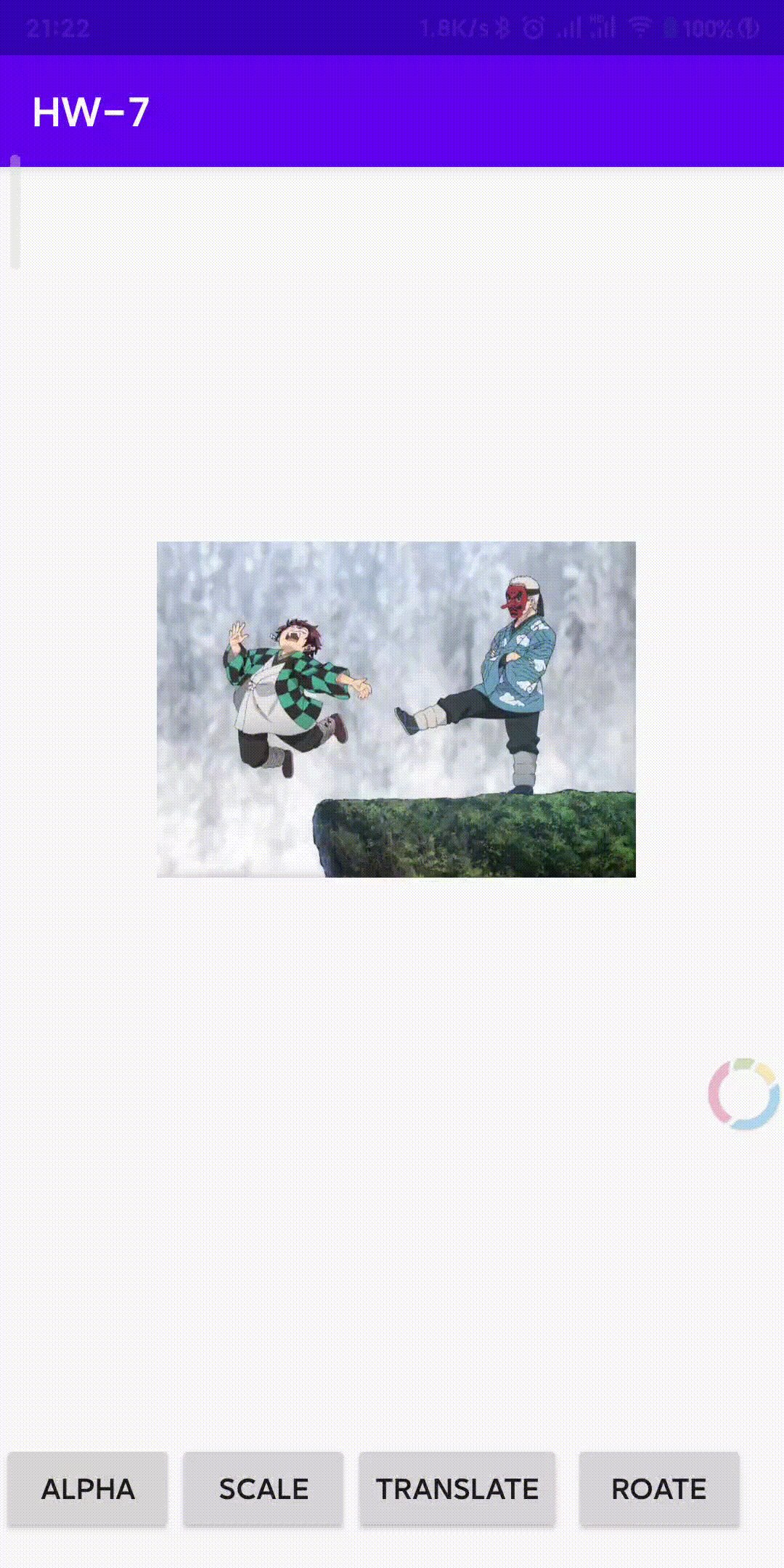

  • 效果图
    补间动画

在res目录下新建anim资源目录，并在anim中分别新建动画资源文件

  • alpha_anim.xml

    1
    2
    3
    4
    5
    6
    7
    8
    <?xml version="1.0" encoding="utf-8"?>
    <set xmlns:android="http://schemas.android.com/apk/res/android">
        <alpha
                android:duration="2000"
                android:fromAlpha="1.0"
                android:toAlpha="0.0" />

    </set>

  • scale_anim.xml

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    <?xml version="1.0" encoding="utf-8"?>
    <set xmlns:android="http://schemas.android.com/apk/res/android">
        <scale
                android:fromXScale="0.0"
                android:toXScale="1.5"
                android:fromYScale="0.2"
                android:toYScale="1.5"
                android:pivotX="50"
                android:pivotY="50"
                android:duration="2000" />

    </set>

  • translate_anim.xml

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    <?xml version="1.0" encoding="utf-8"?>
    <set xmlns:android="http://schemas.android.com/apk/res/android">
        <translate
                android:duration="3000"
                android:fromXDelta="0"
                android:fromYDelta="0"
                android:repeatCount="infinite"
                android:toXDelta="200"
                android:toYDelta="200"/>

    </set>

  • roate_anim.xml

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    <?xml version="1.0" encoding="utf-8"?>
    <set xmlns:android="http://schemas.android.com/apk/res/android">
        <rotate
                android:fromDegrees="0"
                android:toDegrees="-650"
                android:pivotX="50%"
                android:pivotY="50%"
                android:duration="3000"
                android:fillAfter="true">
        </rotate>

    </set>

在layout布局文件activity_main.xml中放入一个ImageView，和4个Button按钮用来显示和切换动画

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
        xmlns:app="http://schemas.android.com/apk/res-auto"
        xmlns:tools="http://schemas.android.com/tools"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        tools:context=".MainActivity">

    <ImageView
            android:id="@+id/test"
            android:layout_width="240dp"
            android:layout_height="240dp"
            android:layout_marginTop="152dp"
            android:src="@drawable/test"
            app:layout_constraintEnd_toEndOf="parent"
            app:layout_constraintHorizontal_bias="0.514"
            app:layout_constraintStart_toStartOf="parent"
            app:layout_constraintTop_toTopOf="parent"
            tools:ignore="MissingConstraints" />

    <Button
            android:id="@+id/button1"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_marginBottom="16dp"
            android:text="Alpha"
            app:layout_constraintBottom_toBottomOf="parent"
            app:layout_constraintStart_toStartOf="parent"
            tools:ignore="MissingConstraints" />

    <Button
            android:id="@+id/button2"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_marginBottom="16dp"
            android:text="Scale"
            app:layout_constraintBottom_toBottomOf="parent"
            app:layout_constraintStart_toEndOf="@+id/button1"
            tools:ignore="MissingConstraints" />

    <Button
            android:id="@+id/button3"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_marginBottom="16dp"
            android:text="Translate"
            app:layout_constraintBottom_toBottomOf="parent"
            app:layout_constraintStart_toEndOf="@+id/button2"
            tools:ignore="MissingConstraints" />

    <Button
            android:id="@+id/button4"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_marginStart="4dp"
            android:layout_marginBottom="16dp"
            android:text="Roate"
            app:layout_constraintBottom_toBottomOf="parent"
            app:layout_constraintStart_toEndOf="@+id/button3"
            tools:ignore="MissingConstraints" />

</androidx.constraintlayout.widget.ConstraintLayout>

在MainActivity中实现切换，加载并开启动画

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
package com.huatec.edu.hw7avtivity;

import androidx.appcompat.app.AppCompatActivity;

import android.os.Bundle;
import android.view.View;
import android.view.animation.Animation;
import android.view.animation.AnimationUtils;
import android.widget.Button;
import android.widget.ImageView;

public class MainActivity extends AppCompatActivity implements View.OnClickListener {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        Button alpha = findViewById(R.id.button1);
        Button scale = findViewById(R.id.button2);
        Button translate = findViewById(R.id.button3);
        Button roate = findViewById(R.id.button4);
        alpha.setOnClickListener(this);
        scale.setOnClickListener(this);
        translate.setOnClickListener(this);
        roate.setOnClickListener(this);
    }

    @Override
    public void onClick(View v) {
        switch (v.getId()) {
            case R.id.button1:setAnimation(R.anim.alpha_anim);
            break;
            case R.id.button2:setAnimation(R.anim.scale_anim);
            break;
            case R.id.button3:setAnimation(R.anim.translate_anim);
            break;
            case R.id.button4:setAnimation(R.anim.roate_anim);
            break;

        }
    }

    private void setAnimation(int ResourceId) {
        Animation animation = AnimationUtils.loadAnimation(this,ResourceId);
        ImageView imageView = findViewById(R.id.test);
        imageView.startAnimation(animation);
    }

    }

属性动画

实现边先小后大边摇晃的动画效果

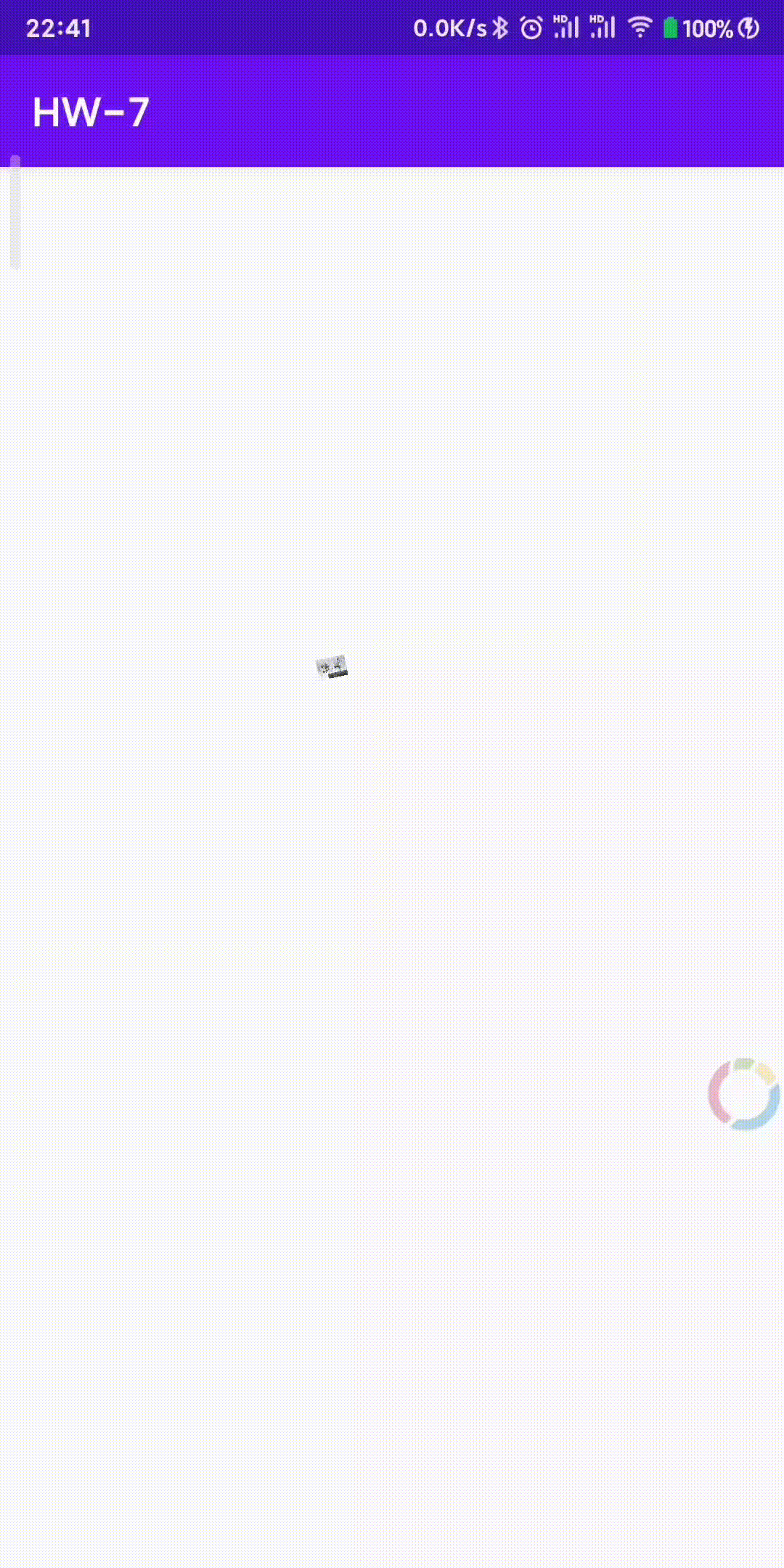

  • 效果图
    属性动画

在layout布局文件activity_shake_anim.xml中放入一个ImageView用来显示动画

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
        xmlns:app="http://schemas.android.com/apk/res-auto"
        xmlns:tools="http://schemas.android.com/tools"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        tools:context=".ShakeAnimActivity">
    <ImageView
            android:id="@+id/shake"
            android:layout_width="240dp"
            android:layout_height="240dp"
            android:layout_marginTop="152dp"
            android:src="@drawable/test"
            app:layout_constraintEnd_toEndOf="parent"
            app:layout_constraintHorizontal_bias="0.514"
            app:layout_constraintStart_toStartOf="parent"
            app:layout_constraintTop_toTopOf="parent"
            tools:ignore="MissingConstraints" />

</androidx.constraintlayout.widget.ConstraintLayout>

在ShakeAnimActivity中实现切换，加载并开启动画

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
package com.huatec.edu.hw7avtivity;

import android.animation.AnimatorSet;
import android.animation.ObjectAnimator;
import android.animation.ValueAnimator;
import android.os.Bundle;
import android.view.animation.Animation;
import android.view.animation.CycleInterpolator;
import android.view.animation.RotateAnimation;
import android.widget.ImageView;

import androidx.appcompat.app.AppCompatActivity;

public class ShakeAnimActivity extends AppCompatActivity {

    ImageView imageView;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_shake_anim);
        imageView=findViewById(R.id.shake);
        initAnimation();
    }
    //缩放
    private void initAnimation(){
        final AnimatorSet scaleAnimSet = new AnimatorSet();
        imageView.setPivotX(imageView.getWidth()+250);
        imageView.setPivotY(imageView.getWidth()+250);
        scaleAnimSet.playTogether(
                ObjectAnimator.ofFloat(imageView,"scaleX",0,1).setDuration(2000),
                ObjectAnimator.ofFloat(imageView,"scaleY",0,1).setDuration(2000));
        scaleAnimSet.start();
        imageView.setAnimation(shakeAnim(6));
    }
    public static Animation shakeAnim(int counts) {
        Animation rotateAnimation = new RotateAnimation(0, 20, Animation.RELATIVE_TO_SELF, 0.5f, Animation.RELATIVE_TO_SELF, 0.5f);
        rotateAnimation.setInterpolator(new CycleInterpolator(counts));
        rotateAnimation.setRepeatCount(-1);
        rotateAnimation.setDuration(3000);
        return rotateAnimation;
    }
}
